D153 Metal Keypad Keyless Gym Locker Secure Locker Locks
Comparing different digital locker lock models?
Explore our digital locker lock guide to compare D153, D152 and P152 for different locker applications, access modes and project requirements.
Features:
- Digits operation,Metal Housing base
- Zinc alloy made
- Low battery indication, Powered by 1pcs 3V CR2032 button cell battery
- Low consumption,Over 10,000 times opening times
- Vertical and horizontal, right type for your choice
- Fix code Mode/One-time use mode, lockers shared by multiple users.User code will be override after unlock.
- Key password+OK+rotating latch
- Private version code length:1-8 digits, Public version code length:6 digits
- Metal cabinet door thickness:0.5-3.0mm, Wooden cabinet door thickness:16-22mm
- Suitable for wooden cabinet,metal cabinet,steel cabinet,iron cabinet,plastic cabinet,glass cabinet, aluminum cabinet door.
- 2 year product warranty
Furniture Application Type:
- Charging cabinet
- Mailbox
- Locker cabinet
- File storage cabinet
- Hinged door cabinet
- Flap door cabinet
- Tambour door cabinet
- Double door cabinet
- Half cabinet
- Safe box
- Gun cabinet
- Rack Server Cabinet
- Server Room Cabinet
- Data cabinet
- Computer Room Cabinets
- Network Equipment Cabinet
- Electronic Cabinet
OEM and ODM are welcome!
|
Access Type |
Combination Digits |
|
Manufacturer |
Guub |
|
Locking Device |
Cam |
|
Function |
One-time password, permanent password |
|
Handle Type |
Shaft Latch |
|
Drill Hole |
Φ30mm |
|
Mounting |
Integrated installation |
|
Battery Type |
CR2032 Button cell battery |
|
Battery Life |
Over 10,000 opening times |
|
Code Length |
6 digits(one-time use) 1-15digits(permanent use) |
|

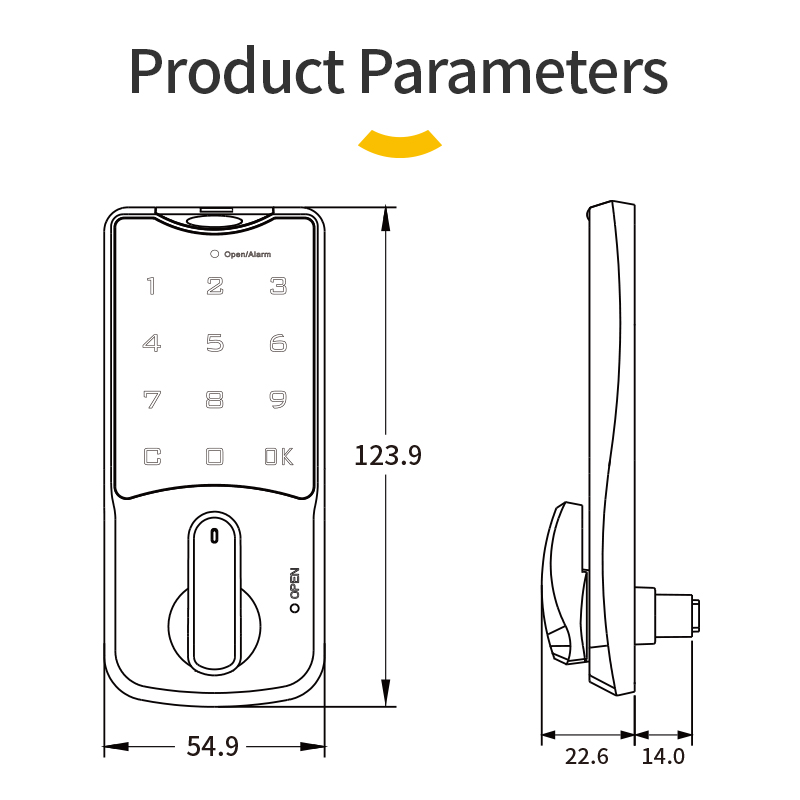

Dimensions |
124 (L) x 55 (W) x 141(D) mm |
|
Warranty |
2 Year |
Product Details:
- Unlocking method. Provide password verification to unlock, enter the correct password and press OK, turn the knob to unlock.
- In terms of material, it is composed of zinc alloy lock body and acrylic touch screen panel, high-end fashion.
- Power supply mode. Powered by external button battery (CR2032), the battery life is more than one year, and there will be a low voltage alarm when there is a power shortage.
- Use of password. Passwords are divided into management passwords and user passwords. The length of the user password is 1-15 digits(6 digits if private version), and the customer can modify it by himself. The password can be combined arbitrarily up to 10 million groups. The password is automatically saved after power off, no garbled code, no drop code.
- Protection against abnormal use. Enter the wrong code four times in a row, and the lock will experience a treble alarm for 1 minute. During the period, enter the correct password to remove the alarm.
- High voltage self-protection. If the voltage is overloaded, the lock cannot be unlocked, which can prevent “Tesla” and other strong electricity from unlocking.

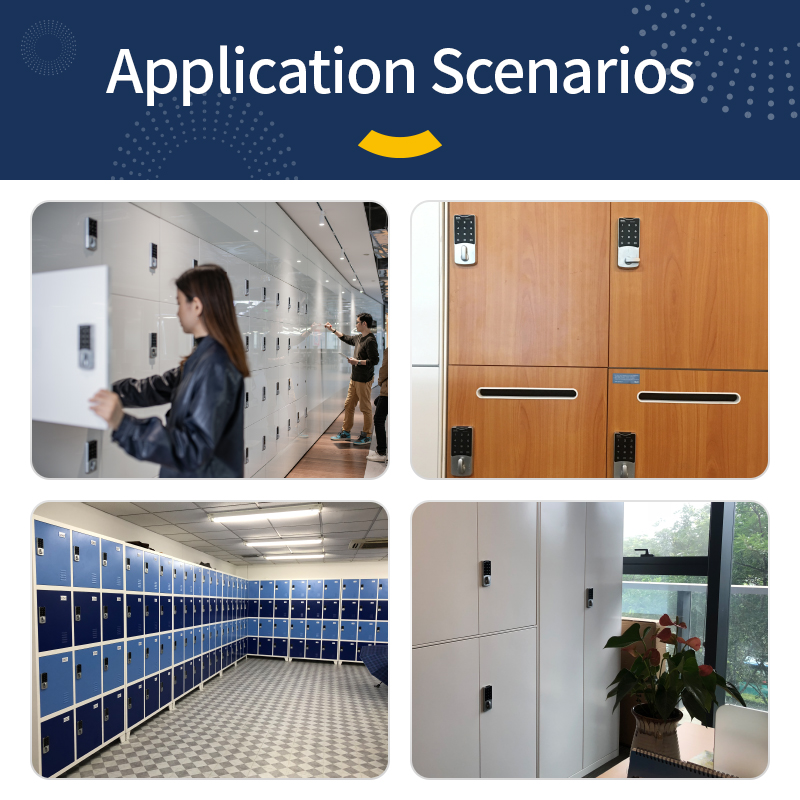

- Use environment. Single-door steel cabinet, wooden cabinet, double-door steel cabinet, etc.
- Acrylic touch screen button design, stylish and generous.
